Model Name: - Equus LSI

Product Overview & Features :

The Avon ZZ3 is a Ultra High Performance Summer tyre designed to be fitted to Passenger Cars. Good wear rates, good dry weather grip, so noise and a good ride. The most striking difference between these and any other tyres their resistance to panic attacks

1. T, H & V-Rated
Indoor-wheel tested to meet or exceed the original equipment requirements of many automobiles, minivans and crossovers.

2. High-angle shoulder slots
Breaks up the direct sound path from the tread area, resulting in a quiet ride.

3. Optimized tread compound
Balances wear and wet/winter traction.

4. M+S Rated

Detailed Tyre Specifications : Click here

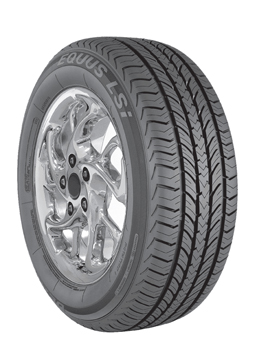

Model Name: - Equus LSi (T-Rated)

Product Overview & Features :

70,000 Mile (T-rated) Tread wear Ltd Warranty
T-rated is Non-Directional Tread
High-Angle Shoulder Slots
Optimized Tread Compound & Bead Contour
Dual Arc Tread
Computer-Aided Noise Reduction
UTQG 620 AB

Detailed Tyre Specifications : Click here

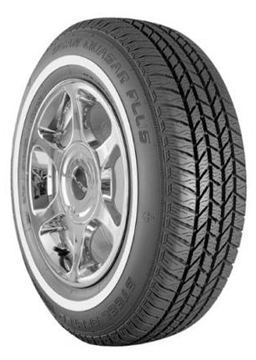

Model Name: - Quasar Plus

Product Overview & Features :

1. All-Weather Tread
"See-through" grooves and wide, lateral traction slots carve out a modern five-rib tread design to provide excellent all-weather performance. Elongated siping in the shoulder elements enhances the tire's gripping ability in diverse weather conditions.

2. White Sidewall
A narrow white stripe captures the style of OE tires on popular automobiles. The white rubber compound is formuated to stay bright and clean for easy maintenance.

3. Black Sidewall
Blackwall sizes are offered for the generation of car enthusiasts who prefer pure sports sytling...even on the family sedan.

4. M+S Rated

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
175/70R13	82 S	520 A B	STD	BLK	4.5 - 6	5	6.89	22.68	5.1	1047	10.5
185/70R14	88 S	520 A B	STD	BLK	4.5 - 6	5.5	7.4	24.23	5.3	1235	10.5
195/70R14	91 S	520 A B	STD	BLK	5 - 6.5	6	7.8	24.78	5.6	1356	10.5
195/70R14	91 S	520 A B	STD	WSW	5 - 6.5	6	7.8	24.78	5.6	1356	10.5
215/70R14	96 S	520 A B	STD	WSW	5.5 - 7	6.5	8.58	25.78	6.1	1565	11
175/65R14	82 S	520 A B	STD	BLK	5 - 6	5	6.85	22.95	5.2	1047	10.5
185/65R14	86 S	520 A B	STD	BLK	5 - 6.5	5.5	7.35	23.4	5.55	1168	10.5
195/65R14	89 S	520 A B	STD	BLK	5.5 - 7	6	7.8	23.95	5.85	1279	10.5
205/70R15	96 S	520 A B	STD	BLK	5 - 7	6	8.11	26.28	5.8	1565	11
205/70R15	96 S	520 A B	STD	WSW	5 - 7	6	8.11	26.28	5.8	1565	11
215/70R15	98 S	520 A B	STD	BLK	5.5 - 7	6.5	8.58	26.78	6.1	1653	11
215/70R15	98 S	520 A B	STD	WSW	5.5 - 7	6.5	8.58	26.78	6.1	1653	11
185/65R15	88 T	520 A B	STD	BLK	5 - 6.5	5.5	7.35	24.4	5.55	1235	10.5
195/65R15	91 S	520 A B	STD	BLK	5.5 - 7	6	7.8	24.9	5.85	1356	10.5
205/65R15	94 S	520 A B	STD	BLK	5.5 - 7.5	6	8.16	25.37	6.05	1477	11
215/65R15	96 S	520 A B	STD	BLK	6 - 7.5	6.5	8.65	25.95	6.5	1565	11
215/65R16	98 T	520 A B	STD	BLK	6 - 7.5	6.5	8.65	26.95	6.5	1653	11
P215/60R16	94 S	520 A B	STD	BLK	6 - 7.5	6.5	8.55	26.05	6.55	1477	11
P225/60R16	97 S	520 A B	STD	BLK	6 - 8	6.5	8.8	26.5	6.8	1609	11
205/55R16	91 S	520 A B	STD	BLK	5.5 - 7.5	6.5	8.3	24.8	7	1356	10.5

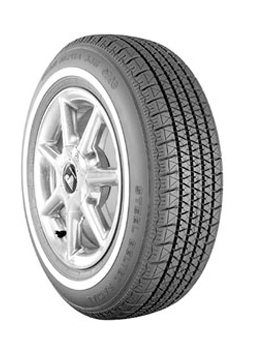

Model Name: - Alpha 365

Product Overview & Features :

1. All-Weather Tread Pattern
Squared off tread elements form an effective pattern of distinct gripping edges for year round traction. Wide circumferential grooves and lateral grooves promote excellent wet traction by channeling water out from the contac patch.

2. Optimized Tread Void
Tread void, created by grooves and sipes, is greatest at the center of the tread to aid traction, then decreases gradually toward the shoulder area for overall, even treadwear. Variable sizing of the tread elements helps reduce noise.

3. M+S Rated

Detailed Tyre Specifications : Click here

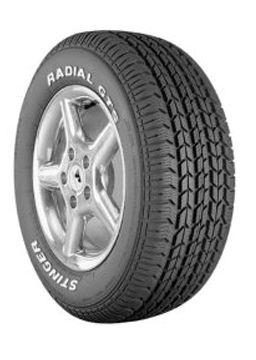

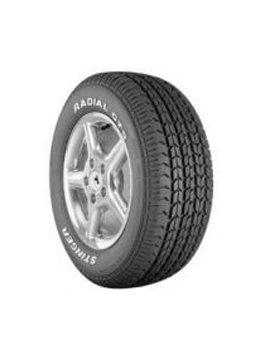

Model Name: - Stinger Radial GTS

Product Overview & Features :

1. Even-Wearing Design
A notched, solid center rib, along with a refined tread element shape, helps provide even treadwear. Shoulder slotting is also designed for resistance to irregular wear while providing solid, all-weather performance.

2. Quiet Ride
Pitch sequence has been optimized to reduce tread related tire noise for iscreased consumer riding comfort.

3. M+S Rated

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
P215/70R14	96 T	440 A B	STD	RWL	5.5 - 7	6.5	8.66	25.76	7	1554	10.5
P225/70R14	98 T	440 A B	STD	RWL	6 - 7.5	6.5	8.92	26.27	7.2	1675	10.5
P185/60R14	82 T	440 A B	STD	BLK	5 - 6.5	5.5	7.15	22.8	6	1047	10.5
P235/60R14	96 T	440 A B	STD	RWL	6.5 - 8.5	7	9.11	25.06	7.6	1565	10.5
P215/70R15	97 T	440 A B	STD	RWL	5.5 - 7	6.5	8.71	26.71	7	1620	10.5
P225/70R15	100 T	440 A B	STD	RWL	6 - 7.5	6.5	9.1	27.37	7.2	1753	10.5
P235/70R15	102 T	440 A B	STD	RWL	6 - 8	7	9.46	27.9	7.6	1896	10.5
P255/70R15	108 T	440 A B	STD	RWL	6.5 - 8.5	7.5	10.4	28.95	8.2	2183	10.5
P215/65R15	95 T	440 A B	STD	RWL	6 - 7.5	6.5	8.38	26	6.8	1510	10.5
P235/60R15	98 T	440 A B	STD	RWL	6.5 - 8.5	7	9.15	26.11	7.6	1642	10.5
P245/60R15	100 T	440 A B	STD	RWL	7 - 8.5	7	9.47	26.55	8	1753	10.5
P255/60R15	102 T	440 A B	STD	RWL	7 - 9	7.5	10.24	27.01	8.2	1885	10.5
P275/60R15	107 T	440 A B	STD	RWL	7.5 - 9.5	8	10.7	28.06	8.9	2149	10.5
P295/50R15	105 S	440 A C	STD	RWL	8 - 10	9.5	12.22	26.8	10.1	2061	10.5
P235/55R16	96 T	440 A B	STD	BLK	6.5 - 8.5	7.5	9.65	26.15	7.95	1565	10.5

Model Name: - Winter Craft HT

Product Overview & Features :

1. SEVERE WEATHER RATED
2. STUDDABLE
3. HIGH TRACTION TREAD DESIGN
The intricate tread pattern balances winter traction and a smooth, quiet ride. The deep lateral and notched circumferential grooves provide excellent evacuation of water and slush from the tread contact patch.

4. "D SQUARED" SIPE TECHNOLOGY (DENSITY x DEPTH)
Incorporates a dense zig-zag sipe pattern that further enhances winter performance while maintaining excellent wet traction. Variable sipe depth maintains element stability while optimizing winter performance.

5. M+S Rated

Detailed Tyre Specifications : Click here

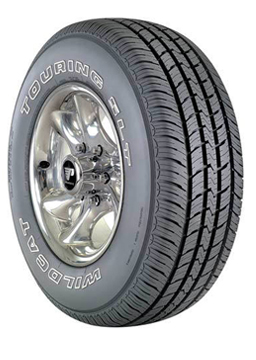

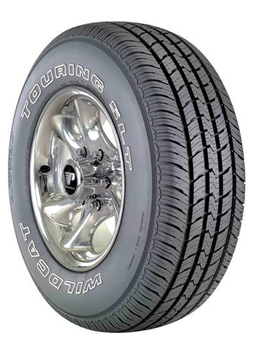

Model Name: - Wildcat Touring SLT

Product Overview & Features :

1. Tabbed Tread Blocks
Keeps lateral slots and grooves open during acceleration, braking and cornering.

2. Computer Generated Tread Design
Computer generated SNDQL Sound Quality tread design optimizes the tread pattern's pitch equence for a quiet ride.

3. Four Wide Circumferential Groves
Offer resistance to hydroplaning and improve wet traction.

4. M+S Rated

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
LT235/75R15	104 Q	0	C	OWL	6 - 7	6.5	9	28.83	6.61	1985	16
LT215/85R16	115 Q	0	E	BLK	5.5 - 7	6	8.21	30.26	6.13	2680	16
LT235/85R16	120 Q	0	E	BLK	6 - 7.5	6.5	9.31	31.65	6.77	3042	16.5
LT225/75R16	115 Q	0	E	BLK	6 - 7	6	8.95	29.39	6.6	2680	16.5
LT245/75R16	108 Q	0	C	OWL	6.5 - 8	7	9.57	30.44	7.45	2205	16.5
LT245/75R16	120 Q	0	E	BLK	6.5 - 8	7	9.57	30.44	7.45	3042	16.5
LT265/75R16	112 Q	0	C	OWL	7 - 8.5	7.5	10.33	31.6	7.65	2470	16
LT265/75R16	123 Q	0	E	OWL	7 - 8	7.5	10.4	31.61	7.6	3415	16
LT235/80R17	120 R	0	E	OWL	6 - 8	6.5	9.4	31.65	6.85	3085	16
LT265/70R17	121 R	0	E	OWL	7 - 8.5	8	10.65	31.6	8.5	3195	16

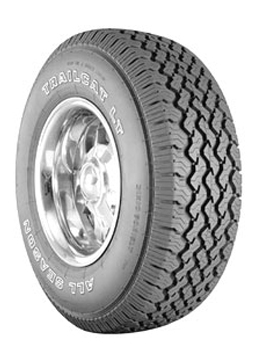

Model Name: - Trailcat LT All Season

Product Overview & Features :

1. Value Design
Advanced engineering makes it possible to offer value performance at low initial cost.

2. All-Weather Tread
A five-rib tread desing creates a pattern of gripping edges for excellent traction. Lateral groves and shoulder slots evacuate water from the contact area for effective wet weather driving control. The arrangement of the tread elements also promotes even treadwear.

3. M+S Rated

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
30X9.50R15LT	104 Q	0	C	OWL	6.5 - 8.5	7.5	9.3	29.1	6.91	1985	14
31X10.50R15LT	109 Q	0	C	OWL	7 - 9	8.5	10.85	30	7.51	2270	14
LT235/75R15	104 Q	0	C	OWL	6 - 7	6.5	8.9	28.7	6.32	1985	14
LT215/85R16	115 Q	0	E	BLK	5.5 - 7	6	8.4	30.2	5.74	2680	14
LT235/85R16	120 N	0	E	BLK	6 - 7	6.5	9.3	31.5	6.11	3042	14
LT225/75R16	115 Q	0	E	BLK	6 - 7	6	8.5	29.3	6.28	2680	14
LT245/75R16	120 N	0	E	BLK	6.5 - 8	7	9.4	30.4	6.61	3042	14
LT265/75R16	112 N	0	C	OWL	7 - 8	7.5	10.38	31.63	7.6	2470	14

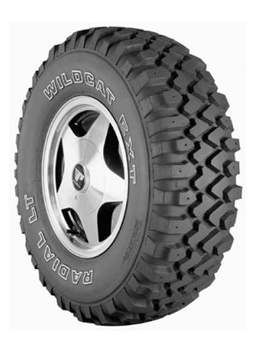

Model Name: - Wildcat EXT Radial LT

Product Overview & Features :

1. Super Traction Tread
Deep shoulder lugs and a unique center traction zone create a bold, aggressive tire. Shoulder lugs are alternately scalloped so that one section always has a clear shot at fresh ground for superb traction. The self-cleaning tread provides holes for inserting traction studs.

2. Steel-Cord Belts
Steel-cord belts help shield the tread area against punctures and impact breaks. The strength of steel and an optimized tread radius provide a big, flat footprint for total road contact and stability.

3. M+S Rated

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
30X9.50R15LT	104 Q	0	C	OWL	6.5 - 8.5	7.5	9.75	29.3	7.8	1985	19.5
31X10.50R15LT	109 Q	0	C	OWL	7 - 9	8.5	10.5	30.5	8.3	2270	20
32X11.50R15LT	113 Q	0	C	OWL	8 - 10	9	11.4	31.4	9	2535	20
33X12.50R15LT	108 Q	0	C	OWL	8.5 - 11	10	12.8	32.5	9.9	2205	21
LT235/75R15	104 Q	0	C	OWL	6 - 7	6.5	9	28.9	6.9	1985	18
LT235/85R16	120 N	0	E	BLK	6 - 7	6.5	9.3	31.8	6.9	3042	18
LT265/75R16	112 N	0	C	OWL	7 - 8	7.5	10.1	32	7.65	2470	18.5
LT265/75R16	123 N	0	E	OWL	7 - 8	7.5	10.1	32	7.65	3415	18.5
LT285/75R16	122 N	0	D	OWL	7.5 - 9	8	11.3	33.1	8.9	3305	18.5

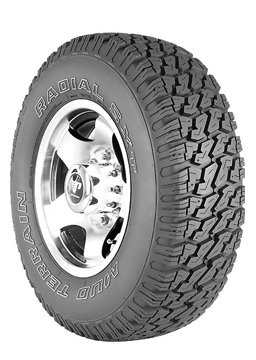

Model Name: - Mud Terrain Radial SXT

Product Overview & Features :

1. Large, Beefy Tread Elements
Designed for off-road applications while providing long, even wear in highway applications.

2. Staggered Tread Elements
The advanced technology breaks up harmonic pitch and significantly reduces tire noise.

3. Pinned for Studs
Self-cleaning tread features holes for metal traction studs.

4. M+S Rated

Detailed Tyre Specifications : Click here

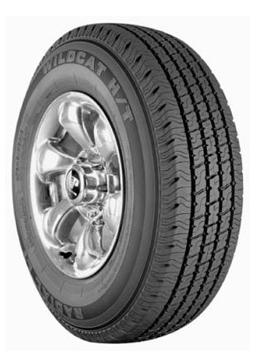

Model Name: - Wildcat H/T Radial LT

Product Overview & Features :

1. Five-Rib Tread Design
Modern, five-rib tread design helps this radial deliver excellent directional control for great handling and dependable highway driving.

2. Aggressive Rib Elements
Three center ribs with strategically-placed cross slots combine with four, wide circumferential grooves to help channel away water and slush for continuous road contact during wet highway driving.

3. M+S Rated

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
7.50R16LT	112 N	0	D	BLK	5.5 - 7	6	8.35	31.8	6.13	2470	14
LT215/85R16	115 N	0	E	BLK	5.5 - 7	6	8.21	30.26	5.93	2680	14
LT235/85R16	120 N	0	E	BLK	6 - 7	6.5	9.21	31.7	6.69	3042	14
LT225/75R16	115 N	0	E	BLK	6 - 7	6	8.6	29.18	6.6	2680	14
LT245/75R16	120 N	0	E	BLK	6.5 - 8	7	9.35	30.46	6.98	3042	14
LT265/75R16	123 N	0	E	BLK	7 - 8	7.5	10.5	31.65	8	3415	14

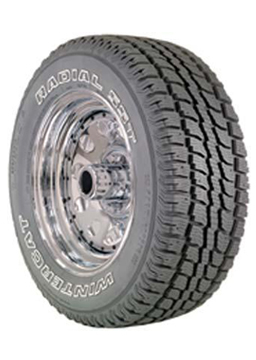

Model Name: - Wintercat Radial SST

Product Overview & Features :

1. Severe Weather Rated
2. Studdable
3. High Traction Tread Design
The intricate tread pattern balances winter traction and a smooth, quiet ride. The deep lateral and notched circumferential grooves provide excellent evacuation of water and slush from the tread contact patch.

4. Patented "Snow Groove" Design Technology
Provides biting edges for excellent snow and ice traction without reducing element stiffness. The snow groove enhances the retention of snow in the outer circumferential grooves to capitalize on the higher traction characteristics of "snow on snow" versus "snow on rubber".

5. Enhanced Studded Performance
A new stud pin hole design improves stud retention and the number has been increased allowing for the use of a greater number of studs for better traction on ice. The stud size is conveniently molded into the sidewall for easy reference.

6. "D Squared" Sipe Technology (Density x Depth)
Incorporates a dense zig-zag sipe pattern that further enhances winter performance while maintaining excellent wet traction. Variable sipe depth maintains element stability while optimizing winter performance.

7. M+S Rated

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
31X10.50R15LT	109 Q	0	C	BLK	7 - 9	8.5	10.5	30.25	8.2	2270	19
LT235/75R15	104 Q	0	C	BLK	6 - 7	6.5	9	28.82	7.2	1985	17
LT215/85R16	115 Q	0	E	BLK	5.5 - 7	6	9.1	30.28	5.9	2680	17
LT235/85R16	120 Q	0	E	BLK	6 - 7	6.5	9.31	31.78	6.94	3042	17
LT225/75R16	115 Q	0	E	BLK	6 - 7	6	8.95	29.3	6.7	2680	17
LT245/75R16	108 Q	0	C	BLK	6.5 - 7.5	7	9.57	30.44	7.45	2205	17
LT245/75R16	120 Q	0	E	BLK	6.5 - 7.5	7	9.57	30.44	7.45	3042	18
LT265/75R16	112 Q	0	C	BLK	7 - 8	7.5	10.33	31.54	8.14	2470	17
LT265/75R16	123 Q	0	E	BLK	7 - 8.5	7.5	10.5	31.54	8.14	3415	17
LT235/80R17	120 Q	0	E	BLK	6 - 8	6.5	9.4	31.85	7	3085	17
LT245/75R17	121 R	0	E	BLK	6.5 - 7.5	7	9.87	31.83	7.65	3195	16
LT245/70R17	119 Q	0	E	BLK	6.5 - 8	7	10.07	30.45	7.45	3000	17
LT265/70R17	121 Q	0	E	BLK	7 - 8.5	8	11.03	31.65	8.4	3195	17

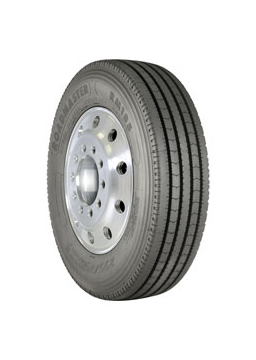

Model Name: - Roadmaster RM185

Product Overview & Features :

1. Regional Steer
The 18.5/32" tread depth combined with solid shoulder ribs make this tire ideally suited to regional haul and pick-up & delivery service. The rib edge siping is designed to promote even wear in longer hauls.

2. Engineered for Retreadability
A cool-running base compound, combined with the 4-belt construction is designed to resist stone penetrations, to deliver the durability and retreadability fleet owners expect.

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
11R22.5	144 L	0	G	BLK	7.5 - 8.25	8.25	10.79	41.42	0	6175	18.5
11R22.5	146 L	0	H	BLK	7.5 - 8.25	8.25	10.79	41.42	0	6610	18.5
11R24.5	146 L	0	G	BLK	7.5 - 8.25	8.25	10.94	43.46	0	6610	18.5
11R24.5	149 L	0	H	BLK	7.5 - 8.25	8.25	10.94	43.46	0	7160	18.5
285/75R24.5	144 L	0	G	BLK	8.25 - 8.25	8.25	10.75	41.5	0	6175	18.5

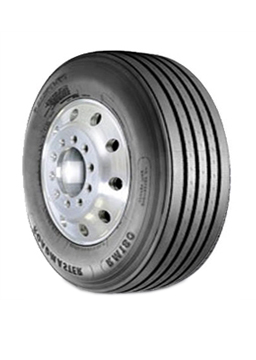

Model Name: - Roadmaster RM180

Product Overview & Features :

1. Long Haul Steer
Decoupling groves resist uneven shoulder wear in line haul applications. Micro sipes on groove edges provide enhanced traction in wet road conditions.

2. Engineered for Retreadability
A cool-running base compound, combined with the 4-belt construction is designed to resist stone penetrations, to deliver the durability and retreadability fleet owners expect.

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
11R22.5	144 L	0	G	BLK	7.5 - 8.25	8.25	10.99	41.36	0	6175	18
295/75R22.5	144 L	0	G	BLK	8.25 - 9	9	11.38	40.1	0	6175	18
11R24.5	146 L	0	G	BLK	7.5 - 8.25	8.25	10.92	43.4	0	6610	18
285/75R24.5	144 L	0	G	BLK	8.25 - 8.25	8.25	10.96	41.4	0	6175	18

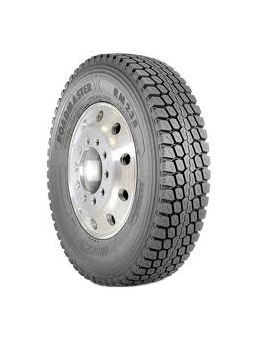

Model Name: - Roadmaster RM235

Product Overview & Features :

1. Regional Drive
Open shoulder lugs provide the traction needed in regional and pick-up and delivery applications. High density center elements resist uneven wear.

2. Engineered for Retreadability
A cool-running base compound, combined with the 4-belt construction is designed to resist stone penetrations, to deliver the durability and retreadability fleet owners expect.

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
11R22.5	144 L	0	G	BLK	7.5 - 8.25	8.25	10.8	41.49	0	6175	23.5
11R22.5	146 L	0	H	BLK	7.5 - 8.25	8.25	10.8	41.49	0	6610	23.5
11R24.5	146 L	0	G	BLK	7.5 - 8.25	8.25	10.87	43.57	0	6610	23.5
11R24.5	149 L	0	H	BLK	7.5 - 8.25	8.25	10.87	43.57	0	7160	23.5
285/75R24.5	144 L	0	G	BLK	8.25 - 8.25	8.25	10.78	41.68	0	6175	23.5

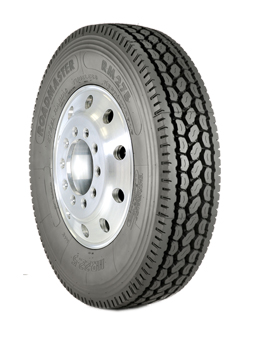

Model Name: - Roadmaster RM275

Product Overview & Features :

1. Long Haul Drive
With deep 27.5/32" tread depth and solid shoulder ribs, the RM275 is designed to deliver long tread life in highway haul service while the center tread elements provide traction in wet and snow.

2. Engineered for Retreadability
A cool-running base compound, combined with the 4-belt construction is designed to resist stone penetrations, to deliver the durability and retreadability fleet owners expect.

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
11R22.5	144 L	0	G	BLK	7.5 - 8.25	8.25	10.84	42.06	0	6175	27.5
11R22.5	146 L	0	H	BLK	7.5 - 8.25	8.25	10.84	42.06	0	6610	27.5
11R24.5	146 L	0	G	BLK	7.5 - 8.25	8.25	10.71	44.06	0	6610	27.5
11R24.5	149 L	0	H	BLK	7.5 - 8.25	8.25	10.71	44.06	0	7160	27.5
285/75R24.5	144 L	0	G	BLK	8.25 - 8.25	8.25	10.71	41.85	0	6175	27.5

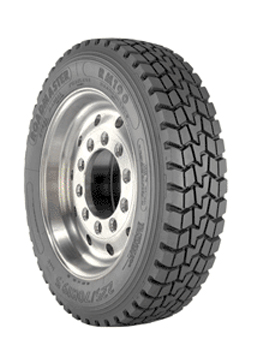

Model Name: - Roadmaster RM190

Product Overview & Features :

1. Directional Drive
The complement to the RM160 on vehicles in pick-up and delivery applications. The directional tread design promotes even wear and extra traction.

2. Engineered for Retreadability
A cool-running base compound, combined with the 4-belt construction is designed to resist stone penetrations, to deliver the durability and retreadability fleet owners expect.

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
225/70R19.5	125 L	0	F	BLK	6 - 6.75	6.75	8.6	32	0	3640	19
245/70R19.5	133 L	0	G	BLK	6.75 - 7.5	7.5	9.5	33.15	0	4540	19

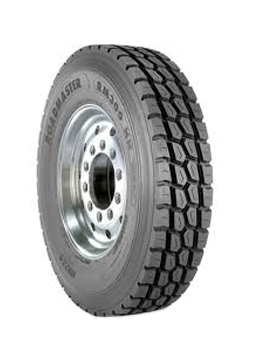

Model Name: - Roadmaster RM300HH

Product Overview & Features :

1. On/Off Road Drive
Rugged 30/32" of tread provides excellent traction and durability. The cut and chip resistant tread compound is designed to tackle mixed service requirements.

2. Engineered For Retreadability
A cool-running base compound, combined with the 4-belt construction is designed to resist stone penetrations, to deliver the durability and retreadability fleet owners expect.

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
11R22.5	146 K	0	H	BLK	7.5 - 8.25	8.25	11.15	42.08	0	6610	30
11R24.5	149 K	0	H	BLK	7.5 - 8.25	8.25	11.11	44.1	0	7160	30

Model Name: - Roadmaster RM160

Product Overview & Features :

1. All Position
This 5-rib tire is designed to perform in all positions on the smaller vehicles in pick-up and delivery applications, with the higher load range tires engineered for the demanding low platform trailer fitment.

2. Engineered for Retreadability
A cool-running base compound, combined with the 4-belt construction is designed to resist stone penetrations, to deliver the durability and retreadability fleet owners expect.

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
215/75R17.5	135 L	0	H	BLK	6 - 6.75	6	8.31	30.2	0	4805	16
235/75R17.5	143 J	0	J	BLK	6.75 - 7.5	6.75	9	31.4	0	6005	16

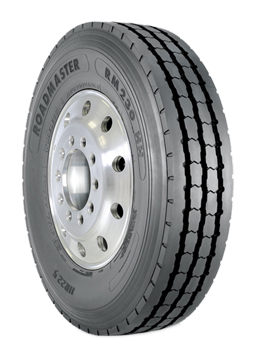

Model Name: - Roadmaster RM230HH

Product Overview & Features :

1. On/Off Road All Position
Deep 23/32" tread provides extended tread life in On/Off road applications. The cut and chip resistant compounding is specifically designed to address mixed service requirements.

2. Engineered For Retreadability
A cool-running base compound, combined with the 4-belt construction is designed to resist stone penetrations, to deliver the durability and retreadability fleet owners expect.

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
11R22.5	146 K	0	H	BLK	7.5 - 8.25	8.25	10.55	41.3	0	6610	23
12R22.5	150 K	0	H	BLK	8.25 - 9	9	11.95	42.92	0	7390	23
315/80R22.5	160 J	0	L	BLK	9 - 9.75	9	12.5	42.8	0	10000	23
11R24.5	149 K	0	H	BLK	7.5 - 8.25	8.25	11.06	43.66	0	7160	23

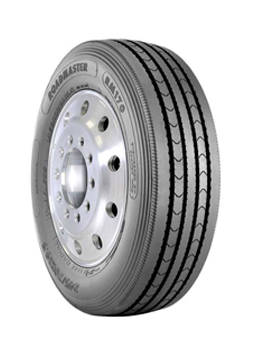

Model Name: - Roadmaster RM170

Product Overview & Features :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
11R22.5	146 K	0	H	BLK	7.5 - 8.25	8.25	10.55	41.3	0	6610	23
12R22.5	150 K	0	H	BLK	8.25 - 9	9	11.95	42.92	0	7390	23
315/80R22.5	160 J	0	L	BLK	9 - 9.75	9	12.5	42.8	0	10000	23
11R24.5	149 K	0	H	BLK	7.5 - 8.25	8.25	11.06	43.66	0	7160	23

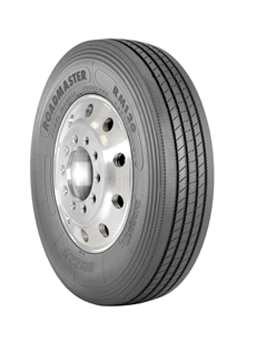

Model Name: - Roadmaster RM120

Product Overview & Features :

1. All-Position Pick-up and Delivery
The RM170's wide tread profile and optimized footprint design delivers long, even treadwear. The V-shaped design of the tread grooves fight to prevent stone retention.

2. Engineered for Retreadability
A cool-running base compound, combined with the 4-belt construction is designed to resist stone penetrations, to deliver the durability and retreadability fleet owners expect.

Detailed Tyre Specifications :

Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
11R22.5	144 L	0	G	BLK	7.5 - 8.25	8.25	10.88	41.11	0	6175	12
11R22.5	146 L	0	H	BLK	7.5 - 8.25	8.25	10.88	41.11	0	6610	12
255/70R22.5	140 L	0	H	BLK	7.5 - 8.25	7.5	10.16	36.68	0	5510	16
11R24.5	146 L	0	G	BLK	7.5 - 8.25	8.25	10.89	43.13	0	6610	12
11R24.5	149 L	0	H	BLK	7.5 - 8.25	8.25	10.89	43.13	0	7160	12
285/75R24.5	144 L	0	G	BLK	8.25 - 8.25	8.25	10.81	40.92	0	6175	12
Tire Size	Service Description	UTQG	Load Range	Sidewall	Approved Rim Width	Measured Rim Width	Section Width	Overall Diameter	Tread Width	Max Load	Tread Depth
225/70R19.5	125 L	0	F	BLK	6 - 6.75	6.75	8.8	32.01	0	3640	15
225/70R19.5	128 L	0	G	BLK	6 - 6.75	6.75	8.8	32.01	0	3970	15
245/70R19.5	133 L	0	G	BLK	6.75 - 7.5	7.5	9.85	33.1	0	4540	16
